Spectral indices (via pysentinel2)

The five indices — NDVI, CFI, NIRv, NDTI, CAI — live in pysentinel2.derive and are computed on read from cloud-masked reflectance (nothing is stored):

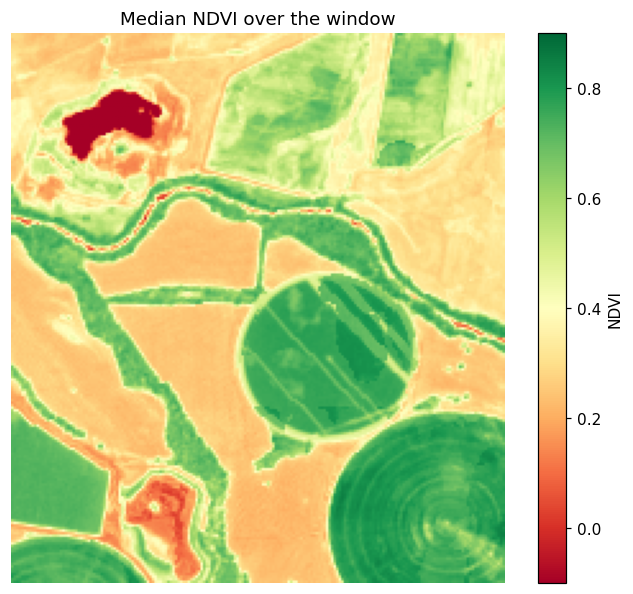

Median NDVI over a window, computed on read

Median NDVI over a window, computed on read
from pysentinel2.cube import Cube

ds = Cube(config=q.config).get_ds_troi(
    q, indices=('NDVI', 'CFI', 'NIRv', 'NDTI', 'CAI'))
ds['NDVI']   # (time, y, x) float32, NaN where cloudy / nodata

Requesting indices implies clean=True, so formulas always see cloud-masked reflectance (DN 0 and nodata are treated as missing, DN values scaled by 1/10000).

Index Formula Use
NDVI (NIR − Red) / (NIR + Red) green vegetation vigour
CFI NDVI × (Red + 2·Green − Blue) crop foliage contrast
NIRv NDVI × NIR GPP proxy
NDTI (SWIR2 − SWIR3) / (SWIR2 + SWIR3) tillage / crop residue
CAI 0.5·(SWIR2 + SWIR3) − NIR dry plant matter vs bare soil

Full reference: pysentinel2.derive module docstrings.
